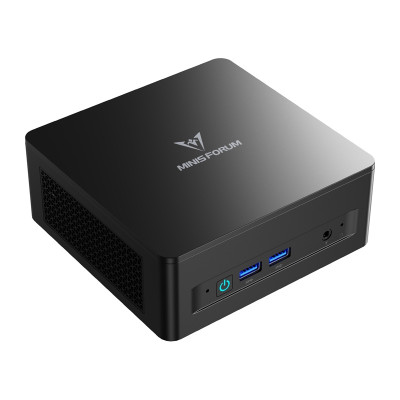

MINISFORUM UM760 Slim Ryzen 5 7640HS barebone mini PC
The MINISFORUM UM760 Slim is a modern mini PC that combines high performance with an exceptionally compact chassis. The model is equipped with an AMD Ryzen™ 5 7640HS processor and integrated AMD Radeon™ 760M graphics, making it ideal for office work, programming, photo editing, video editing, and everyday entertainment. The barebone version gives you the freedom to choose your own RAM and SSDs, allowing you to tailor the configuration to your specific needs.
Modern AMD platform
At the heart of the computer is the AMD Ryzen™ 5 7640HS processor, which delivers reliable performance across a variety of applications. It is supported by integrated AMD Radeon™ 760M graphics. Users have access to two SODIMM slots for DDR5 Dual Channel RAM clocked at up to 5600 MHz, allowing for the installation of up to 96 GB of memory. Two M.2 2280 slots are dedicated to PCIe 4.0 SSDs, enabling storage expansion up to 4 TB.
Advanced and quiet cooling
The UM760 Slim utilizes an advanced cooling system with phase-change technology and three heat pipes, which effectively dissipates heat and maintains a stable TDP of 60 W. As a result, the computer maintains high performance even under prolonged loads. Despite its high computing power, the noise level in Performance Mode remains below 35 dB, ensuring comfortable and quiet operation.
Fast network connectivity
The computer is equipped with a 2.5 GbE LAN port, which provides a fast and stable wired network connection. Wireless communication is handled by Wi-Fi 6E and Bluetooth 5.3, enabling convenient connection of modern accessories. The USB4 port with a bandwidth of up to 40 Gbps not only allows for lightning-fast transfer of large files but also supports DisplayPort Alt Mode and Power Delivery in the range of 65–100 W.
Work on three monitors simultaneously
The MINISFORUM UM760 Slim allows you to connect three monitors simultaneously via HDMI 2.1, DisplayPort 1.4, and USB4 ports. This configuration significantly expands your workspace and makes it easier to work with multiple applications at once. This is particularly useful for data analysis, programming, video editing, and everyday office work.
Compact size, extensive port selection

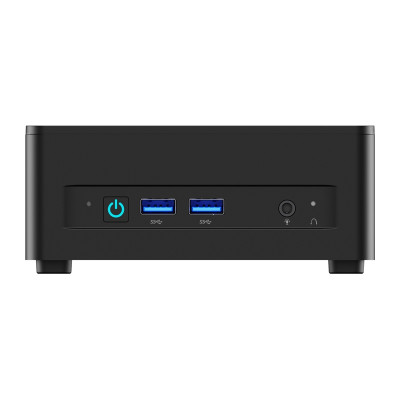

Measuring 13 × 12.6 × 5 cm and weighing approximately 671 g, the enclosure takes up very little space on your desk. The front panel features two USB 3.2 Gen2 Type-A ports, a 3.5 mm audio jack, and a Clear CMOS button. The rear panel features a 2.5G RJ45 port, HDMI 2.1, DisplayPort 1.4, USB4, and two USB 2.0 ports. The included VESA mount allows for convenient mounting of the computer behind a monitor, helping to keep your workspace tidy.
Compatible with Windows 11
The model is compatible with Windows 11 (not included), which offers a modern interface and support for AI-based features such as Microsoft Copilot. Once you’ve added RAM and an SSD, the computer can be quickly set up for work, study, or entertainment.
Included
- Mini PC
- Power supply
- Power cable
- HDMI cable
- VESA mount
- User manual
Specifications
| Brand | MINISFORUM |
|---|
| Model | UM760 Slim |
|---|
| Product type | Mini PC |
|---|
| Operating system | No OS included (supports Windows 11 Pro) |
|---|
| Processor | AMD Ryzen™ 5 7640HS |
|---|
| Graphics card | Integrated AMD Radeon™ 760M |
|---|
| RAM | 2 × DDR5 Dual Channel SODIMM slots, up to 5600 MHz, max. 96 GB |
|---|
| Storage | 2 × M.2 2280 PCIe 4.0 SSD slots |
|---|
| Wired connectivity | 2.5 GbE LAN |
|---|
| Front ports | 2 × USB 3.2 Gen2 Type-A, 1 × 3.5 mm audio jack, 1 × Clear CMOS |
|---|
| Rear ports | 1 × RJ45 2.5G, 1 × HDMI 2.1, 1 × DP 1.4, 1 × USB4, 2 × USB 2.0 |
|---|
| USB4 port | 40 Gbps, DisplayPort Alt Mode, Power Delivery 65–100 W |
|---|
| Wireless connectivity | Wi-Fi 6E, Bluetooth 5.3 |
|---|
| Monitor support | Up to 3 monitors simultaneously |
|---|
| Cooling system | Active phase-change cooling with 3 heat pipes |
|---|
| Noise level | Below 35 dB in Performance Mode |
|---|
| Supported TDP | 60 W |
|---|
| Power supply | External, DC 19V |
|---|
| Dimensions | 13 × 12.6 × 5 cm |
|---|
| Weight | Approx. 671 g |
|---|
