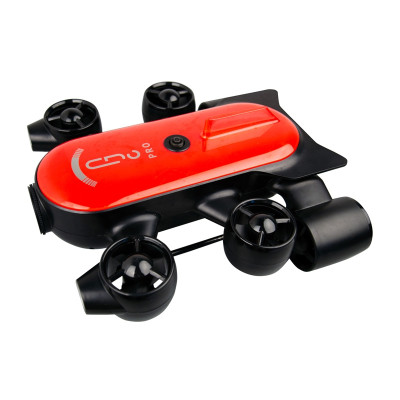

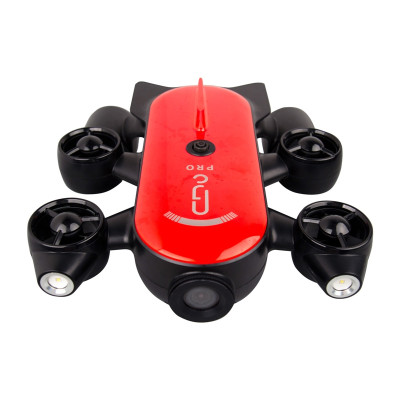

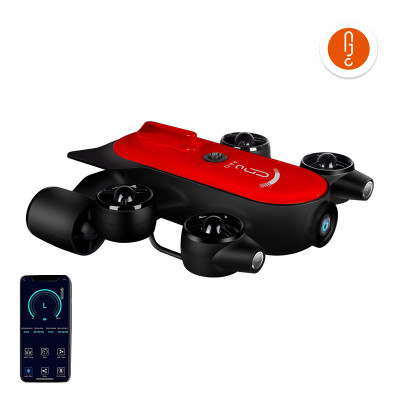

Geneinno T1-Pro 150m 4K UHD underwater drone
The Geneinno T1-Pro is a versatile underwater drone designed for professional and research tasks. With the ability to dive to depths of up to 150 meters and a rugged design, the device is ideal for hull inspection, wreck exploration, aquaculture monitoring or seabed exploration. The unique azimuthal control system ensures stability and precise maneuvering even in strong currents of up to 4 knots. Note: the grapple shown in some photos is not included.
High-quality 4K video and precise images
The drone is equipped with a 4K camera based on a 1/2.3" SONY CMOS sensor, which captures video in 4000 x 3000 pixels at 30 frames per second and photos in 12 MP quality. A wide-angle lens with a 160° field of view and EIS Anti-Shake technology ensure stable, clear shots, even in challenging underwater conditions. The T1-Pro supports JPEG, RAW and DNG formats for advanced post-mission photo editing.
Advanced sensors and application versatility
The Geneinno T1-Pro is equipped with IMU sensors with a 6-axis gyroscope, accelerometer and 3-axis compass for precise control in 6 degrees of freedom. The depth sensor operates with ±0.05m accuracy, and the temperature sensor with ±0.5°C precision.
Long operating time and long-lasting battery
With a capacious 9000 mAh battery, the Geneinno T1-Pro offers up to 4 hours of continuous operation. The battery takes just 3 hours to fully charge.
Smart lighting and durable cable
The drone is equipped with two LED headlights with 1500 lumens each. The beam angle is 60° and the color temperature is 4500K, which ensures natural color reproduction underwater. The 4.5mm diameter cable, which can withstand up to 100kg, allows safe exploration of up to 200 meters.
Intuitive operation and live transmission
The Geneinno T1-Pro can be controlled with a dedicated 2.4 GHz controller, which allows real-time viewing on a smartphone or tablet in full HD 1080p quality. With the Geneinno App, users can track the drone's exact route and receive notifications about its status. Built-in 5GHz and 2.4GHz Wi-Fi provides a stable connection at distances of up to 50 meters, and the wireless relay allows for operation for more than 10 hours.
Included
- Geneinno T1-PRO drone
- Reel with cable and winder
- Wireless transmitter
- Dive filters
- User manual
- Controller
- Charger
- Ballast modules
- Hard case
- User manual
General
| Manufacturer | Geneinno |
|---|
| Model | T1-Pro-150M |
|---|
Unit
| Weight | 5kg |
|---|
| Dimensions | 380 * 348 * 168 mm |
|---|
| Maximum depth | 150m |
|---|
| Operating temperature range | -10℃ ~ 50℃ |
|---|
| Maximum cruising speed | 2 m/s |
|---|
| Maximum ascent/descent speed | 1.5 m/s |
|---|
| Flow resistance | 4kn 2m/s |
|---|
| Battery capacity | 9000mAh/97.2Wh |
|---|
| Maximum dive time | 4 hours |
|---|
| Charging time | 3 hours |
|---|
| Maximum angle of inclination | +60° |
|---|
| Expansion interface | Yes |
|---|
| Degrees of freedom | Forward/backward, ascent/descent, left/right turn, roll, tilt - 5 DOF |
|---|
Camera
| CMOS | 6.17 mm x 4.55 mm SONY CMOS |
|---|
| IRIS | F2.5 |
|---|
| FOV (FIELD OF VIEW) | 160° |
|---|
| Shutter opening time | 1/30S |
|---|
| Image size | 4000*3000 12M |
|---|
| Photo format | JPEG/RAW/DNG |
|---|
| Video resolution | 4K: 4000*3000 30fps |
|---|
| FHD | 1920*1080 60fps |
|---|
| Live broadcast resolution | 480/720/1080P |
|---|
| Maximum video transmission speed | 2 Mbps (live) 12 Mbps (video) |
|---|
| Video format | MP4 (MPEG-4 H264/H265) |
|---|
| Memory | 128G |
|---|
| Recording time | 4~8 hours |
|---|
| Anti-shake lens protection | EIS Anti-Shake |
|---|
Light
| Lumens | 2*1500 LM |
|---|
| Light beam angle | 60° |
|---|
| Temperature | 4500K |
|---|
Cable
| Cable diameter | 4.5 mm |
|---|
| Working strength of the cable | 220 lbs |
|---|
| Cable length | Standard 200 m |
|---|
Application
| Live transmission | Yes |
|---|
| Operating systems | IOS 9.0 +/ Android 5.0 + |
|---|
Sensor
| IMU | 6-axis gyroscope and accelerometer + 3-axis compass |
|---|
| Depth sensor Precision | +/- 0.05m |
|---|
| Temperature sensor precision | +/- 0.5℃ |
|---|
| Tilt/tilt sensor precision | +/- 1° |
|---|
| Precision of yaw sensor | +/- 1.5° |
|---|
Wireless relay
| Weight | 0.45kg |
|---|
| Dimensions | 109 x 99 x 53 mm |
|---|
| Battery capacity | 3200mAh/34.56Wh |
|---|
| Maximum operating time | >10 h |
|---|
| Water resistance | IP57 |
|---|
| WIFI frequency | 5GHz+2.4GHz |
|---|
| Maximum WIFI distance | 50m |
|---|
| Charging time | 3 hours |
|---|
