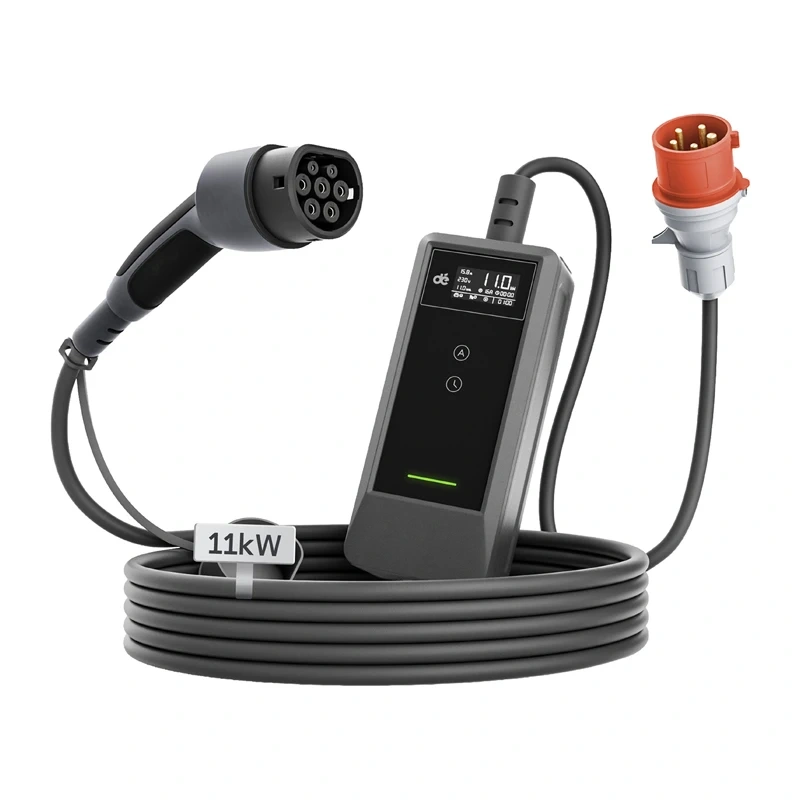

DEPOW Portable EV Charger
The DEPOW 11 kW portable EV charger is a three-phase device operating at 400 V, designed to charge electric vehicles equipped with a Type 2 connector. The model operates in Mode 2 and allows the current to be adjusted to 6 A, 8 A, 10 A, 13 A, or 16 A, so charging parameters can be tailored to the capabilities of the electrical installation. The charger comes equipped with a 10-meter cable, an LCD display, LED indicators, and a scheduled charging function. It can be used both indoors and outdoors, making it suitable for use in a garage, on a driveway, or while traveling.
Current Adjustment and Clear Operation Monitoring
The ability to set the current to one of five levels allows you to adjust the charging method to the available power source. The LCD display makes it easy to monitor parameters and the device’s current operating status without the need for additional accessories. This is complemented by LEDs that indicate power, standby mode, charging, and errors, so the most important information is visible directly on the control box.
Scheduled Charging and a 10-Meter Cable
The scheduled charging feature lets you set the device to start operating at a convenient time, which can be useful, for example, when charging your car overnight. The Plug & Play design simplifies daily operation and allows you to quickly get the device ready for use. The 10-meter cable provides greater flexibility in positioning your car relative to the power source, which is especially practical on a driveway or in a larger garage.
Comprehensive charging safeguards
DEPOW is equipped with a 30 mA Type A RCD for AC current and a 6 mA protection for DC current, as well as protection against overload, overvoltage, undervoltage, leakage current, and short circuits. The device also monitors the grounding and temperature of the control box, reducing the risk of operation under abnormal conditions. Additionally, a relay welding detection function has been incorporated to identify malfunctions in this component.
Suitable for indoor and outdoor use
The control box has an IP66 rating, while the Type 2 plug meets IP55 requirements, increasing their resistance to dust and water. The charger can operate at temperatures ranging from -25°C to 50°C and at humidity levels from 5% to 95% RH without condensation. The storage temperature range is from -40°C to 80°C, while power consumption in standby mode does not exceed 5 W.
| Manufacturer | DEPOW |
|---|
| Model | deM2D11B10NA_DL |
|---|
| Maximum power | 11 kW |
|---|
| Power supply | three-phase |
|---|
| Voltage | 400 V AC |
|---|
| Frequency | 50 Hz |
|---|
| Connector | Type 2 |
|---|
| Cable length | 10 m |
|---|
| Current settings | 6 A / 8 A / 10 A / 13 A / 16 A |
|---|
| Application | indoor and outdoor |
|---|
| Control box dimensions | 220 × 95 × 57 mm |
|---|
| Control box protection rating | IP66 |
|---|
| Type 2 plug protection rating | IP55 |
|---|
| Operating temperature | from -25°C to 50°C |
|---|
| Storage temperature | from -40°C to 80°C |
|---|
| Operating humidity | 5–95% RH, non-condensing |
|---|
| Total harmonic distortion (THD) | ≤5% |
|---|
| Standby power consumption | <5 W |
|---|
| RCD | Type A 30 mA AC + 6 mA DC |
|---|
| Protections | overcurrent, overvoltage, undervoltage, ground fault, short circuit, and improper grounding |
|---|
| Additional protection | control cabinet temperature monitoring and detection of relay contact sticking |
|---|
| Display | LCD |
|---|
| LED indicators | power, standby, charging, error |
|---|
| Scheduled charging function | yes |
|---|
|
