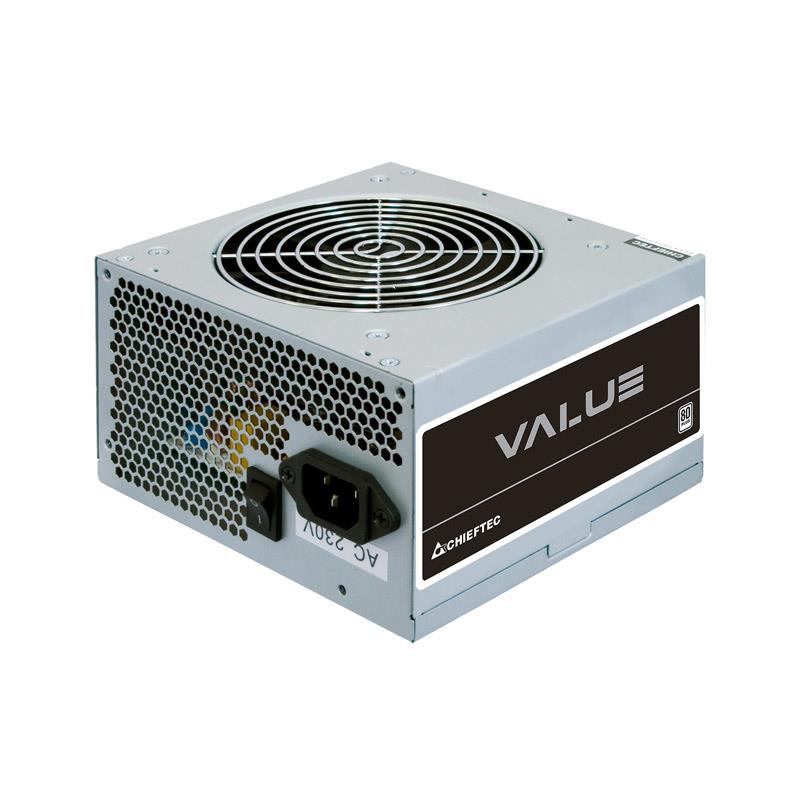

Power Supply | CHIEFTEC | ATX | PC | 230 V | 500 W | APB-500B8

Product Code: EL1234709

EAN: 4710713230569

Available at supplier's warehouse: 100 pcs

Order now and collect in store on 29 October

The delivery time is calculated from the moment the order is placed and payment is received. If the order is placed on a weekend or public holiday, the delivery time starts from the next business day.

€33.44

€35.59

-6%

Business Price 27.64 €

Add to cart Buy in 1 click

Specifications
Description

On/off switchYes
AC input frequency50 Hz
PurposePC
Fan diameter12 cm
Cooling typeActive
PCI Express power connectors (6+2 pin)1
80 PLUS certification80 PLUS
Depth140 mm
AC input voltage230 V
Units per Pallet0
Units per Shipping Box10
Unit Box Height0.15
Unit Height15 cm
Unit Box Width0.09
Compliance certificatesRoHS
Unit Width9 cm
Number of fans1 fan(s)
Category CodePSU
Power Factor Correction (PFC) typeActive
Max output current (+3.3V)22 A
Max output current (-12V)0.3 A
Peripheral (Molex) power connectors (4-pin)2
Power supply unit (PSU) form factorATX
Width150 mm
Shipping Box Height20 cm
Unit Box Length0.22
Unit Depth22 cm
Max output current (+5Vsb)2.5 A
Motherboard power connector20+4 pin ATX
Cabling typeNon-Modular
Harmonized System (HS) code84733020
Product colourSilver
Number of SATA power connectors3
Product Net Weight1.2 kg
Total power500 W
Floppy disk drive connectorYes
Shipping Box Depth49.5 cm
Shipping Box Weight13.5 kg
Combined power (-12V)3.6 W
ATX version2.3
Height87 mm
Power factor0.9
Combined power (+5Vsb)12.5 W
Shipping Box Width45 cm
Vendor Homepagehttps://www.chieftec.eu/products-detail/181/VALUE_SERIES/250/APB-500B8
Input current4 A
Combined power (+3.3V)130 W
Combined power (+5V)130 W
Max output current (+12V1)24 A
Max output current (+12V2)21 A
Max output current (+5V)19 A
Efficiency80%
Power protection featuresOver voltage/Overload/Short circuit/Under voltage
EPS power connector (8-pin)No
CertificationCE, CB, TÜV, EAC
Unit Calculated Weight1.35 kg

Chieftec Value APB-500B8

The APB-500B8 of the new VALUE SERIES offers both quality and efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with
installed thermal board, the PSU runs quietly on full load and provides REAL power, thereby providing all security features. Certified by CE, CB TÜV, EAC amongst many others, it’s the VALUE choice!
