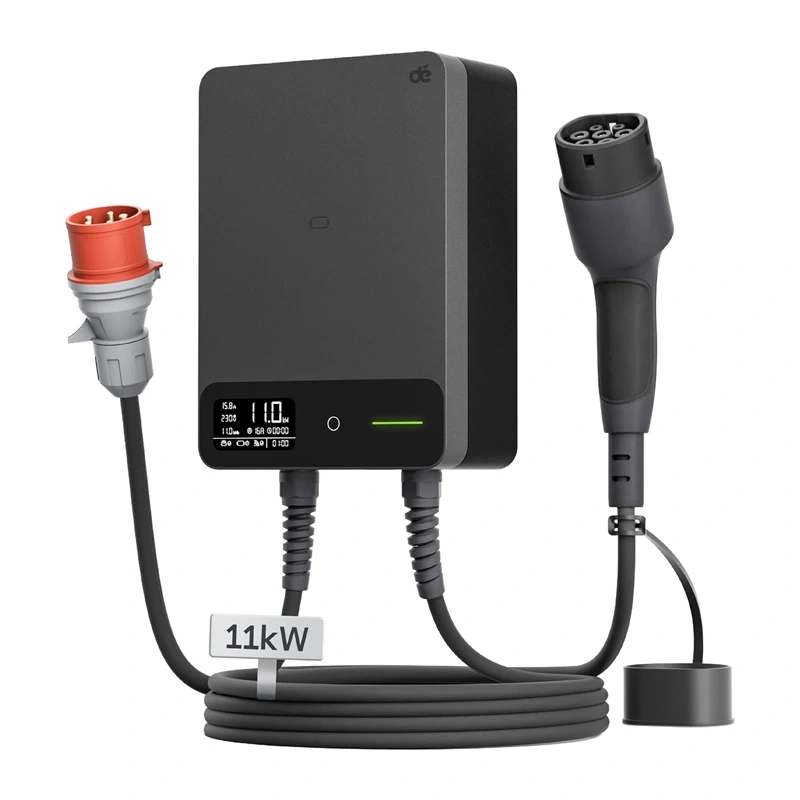

DEPOW Wallbox Electric Vehicle Charger
The DEPOW Wallbox 11 kW electric vehicle charger with a 15-meter cable is a solution designed for convenient charging of electric vehicles at home, in the garage, or on your property. The device offers up to 11 kW of power, adjustable charging current ranging from 6 to 16 A, and support for both single-phase and three-phase installations, allowing you to tailor its operating parameters to the capabilities of your electrical system. The Wallbox is equipped with an LCD display, Wi-Fi and Bluetooth connectivity, and mobile app features such as remote start and stop of charging, real-time monitoring, a charging schedule, and a charging history.
Current Control and Scheduled Charging
The ability to adjust the current from 6 to 16 A allows you to tailor the charging load to current conditions and system parameters. The scheduling feature lets you plan charging for a specific time, so your car can be charged, for example, overnight or whenever it’s most convenient for you. You can monitor real-time information about the device’s operation on the LCD display without having to use your phone every time.
Control via Wi-Fi and Bluetooth App
Wi-Fi and Bluetooth connectivity expand the capabilities for controlling the DEPOW Wallbox via the app. Users can remotely start or stop charging, monitor the charging process in real time, and review the history of previous sessions. RFID support is also available, allowing users to control device activation and restrict access to the charger by unauthorized persons.
Charging Safety Features
The Wallbox is equipped with a 30 mA AC + 6 mA DC RCD and protection systems against, among other things, overload, overvoltage, undervoltage, leakage current, short circuits, and improper grounding. The device also monitors temperature, which helps reduce the risk of operation under unsuitable thermal conditions. The IP54 protection rating for the Wallbox housing and IP55 for the connected Type 2 connector allow the charger to be used both indoors and outdoors.
Designed for everyday use
The DEPOW device operates at 400 V AC and 50 Hz, with a maximum power consumption of 11 kW. The charger complies with the IEC 61851-1 and IEC 62196-2 standards and is CE-certified; its operating temperature range is from -25°C to 55°C. The 15-meter cable allows for easier connection of a car parked near the Wallbox, and LED indicators show power status, standby mode, charging status, and any device errors.
| Manufacturer | DEPOW |
|---|
| Model | deWB11B15A_DL |
|---|
| Cable Length | 15 m |
|---|
| Maximum Charging Power | 11 kW |
|---|
| Power Supply | 400 V AC, 50 Hz |
|---|
| Supports | 1-phase and 3-phase installations |
|---|
| Current adjustment | 6–16 A |
|---|
| Connector | Type 2 |
|---|
| Connectivity | Wi-Fi / Bluetooth |
|---|
| Display | LCD |
|---|
| RFID support | Yes |
|---|
| Scheduled charging | Yes |
|---|
| Remote start and stop of charging | Yes |
|---|
| Real-time monitoring | Yes |
|---|
| Charging history | Yes |
|---|
| Wallbox protection rating | IP54 |
|---|
| Protection rating of the connected Type 2 connector | IP55 |
|---|
| RCD | Type B AC 30 mA + DC 6 mA |
|---|
| Protections | Overcurrent, overvoltage, undervoltage, earth leakage current, short circuit, improper grounding, and overheating |
|---|
| Operating temperature range | from -25°C to 55°C |
|---|
| Storage temperature range | from -40°C to 80°C |
|---|
| Operating humidity | 5–95% RH, non-condensing |
|---|
| Total harmonic distortion (THD) | ≤5% |
|---|
| Standby power consumption | <5 W |
|---|
| Dimensions | 297 × 214 × 105 mm |
|---|
| LED indicators | power, standby, charging, error |
|---|
| Intended Use | For indoor and outdoor use |
|---|
