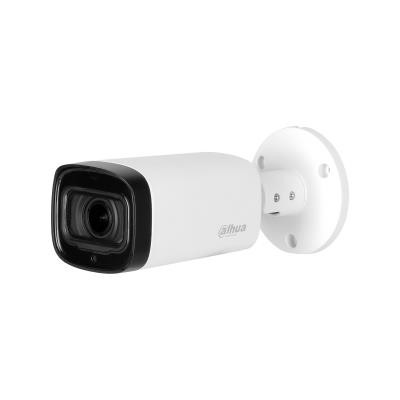

CAMERA HDCVI 1080P IR BULLET / HAC-HFW1231R-Z-A-2712 DAHUA

Product Code: EL1451664
EAN: 6923172506993
Available at supplier's warehouse: 1 pcs
Order now and collect in store on 29 October
The delivery time is calculated from the moment the order is placed and payment is received. If the order is placed on a weekend or public holiday, the delivery time starts from the next business day.
€126.02
  • Specifications
  • Description

  • Connectivity technologyWired
  • Weight550 g
  • Built-in microphoneYes
  • BluetoothNo
  • Maximum resolution1920 x 1080 pixels
  • Ethernet LANNo
  • Wi-FiNo
  • FocusMotorized
  • Sensor typeCMOS
  • Housing materialMetal
  • Noise reductionYes
  • Wide Dynamic Range (WDR)Yes
  • Storage temperature (T-T)-30 - 60 °C
  • Power source typeDC
  • Closest focusing distance0.5 m
  • Auto focusYes
  • Frame rate30 fps
  • Camera shutter typeElectronic
  • Signal-to-Noise Ratio (SNR)65 dB
  • Night vision distance80 m
  • Units per Pallet0
  • Units per Shipping Box1
  • Product colourWhite
  • Supported video modes1080p
  • Angle of rotation360°
  • Operating relative humidity (H-H)0 - 95%
  • Unit Box Width0.114
  • Unit Width11.4 cm
  • Product Net Weight0.55 kg
  • Form factorBullet
  • Number of lenses1
  • Night visionYes
  • Built-in HDDNo
  • Operating temperature (T-T)-30 - 60 °C
  • Number of cameras1
  • Placement supportedOutdoor
  • Day/night modeYes
  • Tilt angle range0 - 90°
  • Progressive scanYes
  • DC output voltage12
  • Privacy maskingYes
  • Mounting typeCeiling/Wall/Pole
  • International Protection (IP) codeIP67
  • Pan range0 - 360°
  • LED typeIR
  • Noise reduction technology3D noise reduction
  • Gain control typeAuto/Manual
  • Back Light Compensation (BLC)Yes
  • Highlight Compensation (HLC)Yes
  • Smart IRYes
  • MirrorYes
  • Number of illumination LEDs4
  • Storage relative humidity (H-H)0 - 95%
  • Total megapixels2 MP
  • Unit Calculated Weight0.71 kg
  • Camera shutter speed1/25 - 1/100000 s
  • Optical sensor size25.4 / 2.8 mm (1 / 2.8")
  • Package weight760 g
  • Maximum aperture number1.5
  • Lens viewing angle, vertical53°
  • White balanceAuto
  • Lens viewing angle, diagonal123°
  • Category CodeHSC
  • Lens viewing angle, horizontal102°
  • BNC output ports1
  • Shipping Box Weight0.71 kg
  • Focal length range2.7 - 12 mm
  • Minimum illumination0.002 lx
  • Analog signal format systemPAL
  • Dynamic range130 dB
  • TypeCCTV security camera
  • Supported graphics resolutions960 x 480, 960 x 576, 1920 x 1080 (HD 1080)
  • Shipping Box Width11.4 cm
  • Depth90.4 mm
  • CertificationCE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368- 1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
  • Height90.4 mm
  • Observe distance (wide)19 m
  • Vendor Homepagehttps://www.dahuasecurity.com/products/All-Products/HDCVI-Cameras/Lite-Series/1080P/Starlight/HAC-HFW1231R-Z-A
  • Unit Box Height0.109
  • Unit Box Length0.232
  • Detect distance132.1 m
  • Observe distance52.9 m
  • Recognize distance26.4 m
  • Identify distance13.2 m
  • Detect distance (tele)132.1 m
  • Detect distance (wide)47.6 m
  • Identify distance (tele)13.2 m
  • Identify distance (wide)4.76 m
  • Observe distance (tele)52.9 m
  • Recognize distance (tele)26.4 m
  • Recognize distance (wide)9.5 m
  • Power consumption (max)9.4 W
  • Width209.6 mm
  • Unit Calculated Volume0.002883 cubm
  • Shipping Box Height10.9 cm
  • Unit Depth23.2 cm
  • Shipping Box Depth23.2 cm
  • Unit Height10.9 cm

Lite Series is suitable for users who requires high quality monitoring products at areasonable price. It is cost effective and offers high performance, which makes it an ideal choice for residential and small-medium business applications. This series offers an option of a wide range of technologies such as Full-color and Starlight, providing various solutions for different scenarios.

Starlight
With the adoption of large sized high performance sensor and large aperture lens, the camera is able to provide incomparable performance even under extreme lowlight environment. The starlight feature allows more details to be captured and accurate color to be recognized at night or in scenes with limited illumination.

Broadcast-quality Audio
Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.
* Audio input is available for some models of HDCVI cameras.

Wide Dynamic Range
With advanced Wide Dynamic Range (WDR) technology, Dahua HDCVI camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.

Super Adapt
Embedded with intelligent algorithm, for changing external environment, camera can automatically adjust parameters to present the optimal image, and it solves the trouble of configuration.

Advanced 3D NR
3D NR is noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua's advanced 3D NR technology allows remarkable noise reduction with little impact to sharpness, especially under limited lighting condition. Besides, the advanced 3D NR effectively decreases the band width and saves the storage space.

Smart Illumination
The camera is designed with IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua's unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object comes closer to the camera.

Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 mins.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

  • Max. 30 fps@1080P
  • Starlight, 130dB true WDR, 3D NR
  • Auto focus, 2.7 mm–12 mm motorized lens
  • CVI/CVBS/AHD/TVI switchable
  • Super Adapt
  • Built-in mic
  • Max. IR length 80 m, Smart IR
  • IP67, 12V DC
